CNC Bending Machine
BIT – The Beauty of Modern Industry

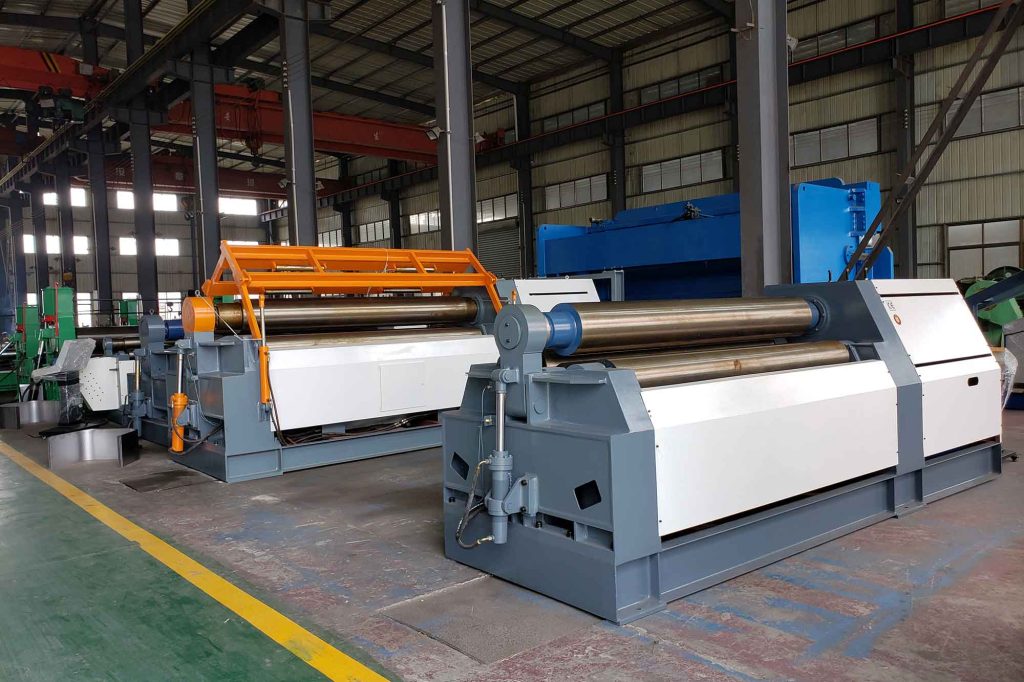

PR Plate Rolling Machines
PR Plate Rolling Machines are engineered for safe operations and unparalleled maximum flexibility while offering the latest in features and advanced technology. Our PR4 CNC Plate Bending Machines will save you money.

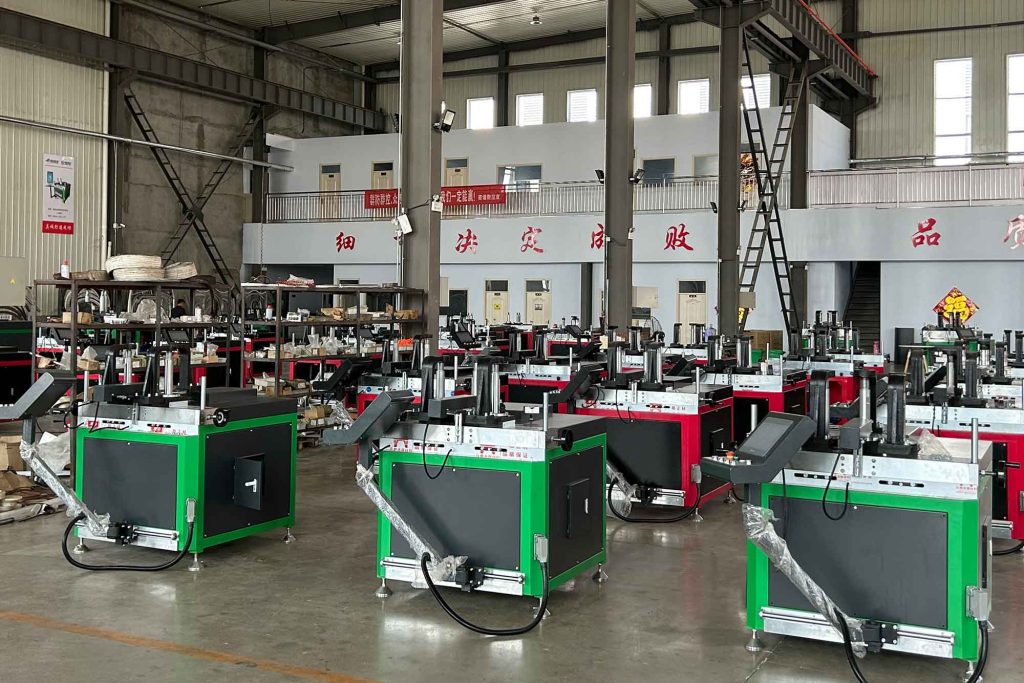

PBA Aluminum Bending Machine
PBA Series CNC Profile Bending Machine is an aluminum bending machine for aluminum profiles;
Up to`15 independent controllable servo axes; Automatic CNC systems; Three-dimensional bending. Accuracy is as high as ≤0.01mm. which is the standard and optional equipment of the PBA-CNC series aluminum bending machine.
Can be bent in various shapes (3-D graphics, C-shaped, U-shaped, full circle, ellipse, multiple radii combination shapes, etc.)
Computer numerically controlled (CNC) section bending is a manufacturing process that is carried out by a CNC Aluminum Bending Machine (aka Aluminum Profile Bending Machine), suitable for bending aluminum profiles for automobiles, doors, and windows.
Parameters of PBA Aluminum Bending Machine
| Model | PBA-300F | PBA-450 | PBA-500 | PBA 500+ | PBA-500F | PBA-600 | PBA 600+ | PBA-800 | PBA-1000 | PBA-1200 |
| Power (kW) | 2.5 | 5.5 | 4 | 6.5 | 5 | 5 | 10 | 10 | 18 | 22.5 |
| Roller Speed (rpm) | 1-30 | 1-20 | 1-15 | 1-15 | 1-15 | 1-15 | 1-15 | 1-15 | 1-15 | 1-15 |
| Max.DIA Mold (mm) | 160 | 240 | 240 | 240 | 240 | 260 | 260-400 | 260/320 | 300 | |
| Roller DIA (mm) | 30 | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 105 | 125 |
| Axis Distance (mm) | 100 | 180-390 | 100-300 | 270-600 | 310 | 270-600 | 370-1200 | 270-600 | 450～1200 | 500-1200 |
| Y-axis Thrust (tons) | 5 | 15 | 15 | 20 | 15 | 30 | 35 | 50 | 70 | 70 |
| Accuracy Y-axis (mm) | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | |
| Max.Torque X-Axis (N.m) | 1200 | 1700 | 2500 | 4000 | 2500 | 4500 | 6000 | 6000 | 10000 | 1300 |
| Max.Section size (W×H)(mm) | 50×70 | 120×150 | 150×200 | 120×150 | 150×200 | 200×250 | 200×250 | 250×300 | 300×450 | |
| Dimension (m) | 1.2×.8×1.3 | 1.8×.7×1.7 | 1.5×1.2×1.4 | 1.6×1.2×1.5 | 1.5×1.2×1.4 | 1.5×1.2×1.4 | 1.8×1.8×1.6 | 1.8×1.8×1.6 | 1.9×20×1.75 | 2.1×2.2×1.85 |

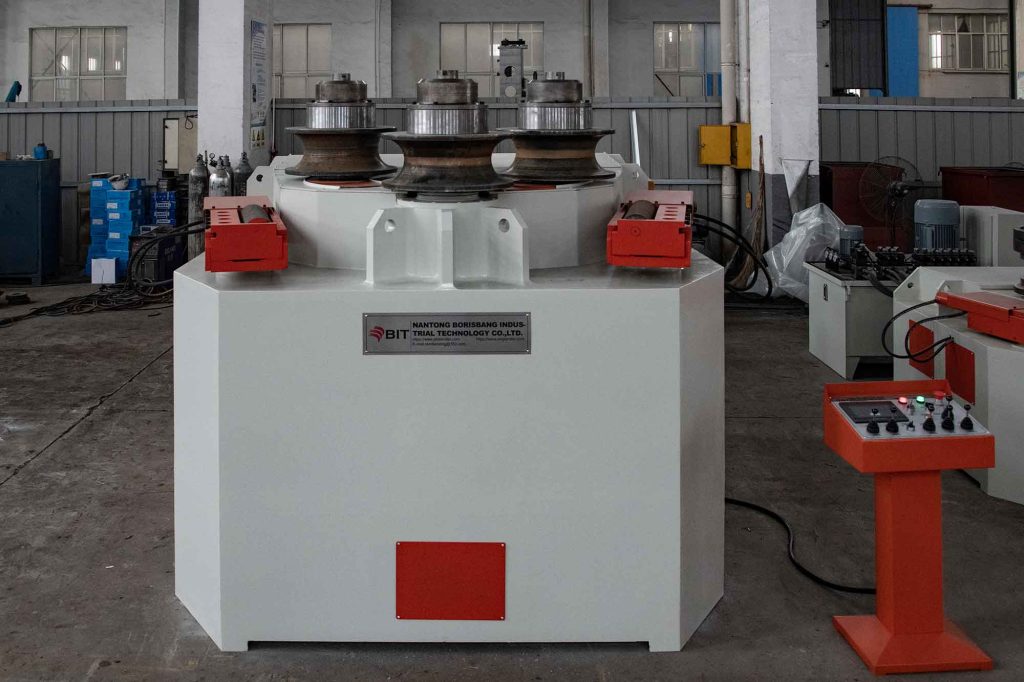

PBH Profile Bneding Machine
Section Bending Machines for roll bending of various metals. Steel bars, angle irons, H and I beams, channels, tubes, and pipes bending made easy.
Powerful roll bending ability can bend Carbon Steel, Stainless Steel, and Aluminum Profiles to over 180° and into circles or arcs, and is often chosen to create circular pieces.
The maximum bending section modulus of PBH Section Bending Machines can reach a real 1000m3.
| Model | PBH 120 | PBH 140 | PBH 200 | PBH 300 | PBH 360 | PBH 450 | PBH 500 | PBH 550 | PBH 600 | PBH 700 | |
 | Max.Section(mm) Min.Bending DIA(mm) | 80×10 Φ800 | 100×25 Φ900 | 120×25 Φ1000 | 150×30 Φ1500 | 175×40 Φ2500 | 200×50 Φ2500 | 250×70 Φ3500 | 250×70 Φ3500 | 300×70 Φ4000 | 300×80 Φ5000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 180×20 Φ400 | 200×35 Φ600 | 250×30 Φ1000 | 250×40 Φ1000 | 350×50 Φ1500 | 400×60 Φ2000 | 450×70 Φ1000 | 500×80 Φ1200 | 500×100 Φ1600 | 650×100 Φ2000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 50×50 Φ500 | 60×60 Φ600 | 70×70 Φ800 | 80×80 Φ1500 | 110×110 Φ1600 | 130×130 Φ2000 | 145×145 Φ2500 | 165×165 Φ3000 | 200×200 Φ3500 | 240×240 Φ4000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 76×4 Φ700 | 102×4 Φ1000 | 140×4 Φ1800 | 170×6 Φ2000 | 219×6 Φ2500 | 245×8 Φ3000 | 325×8 Φ4000 | 400×8 Φ8000 | 452×10 Φ8000 | 510×20 Φ1000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 65×65×6 Φ1000 | 90×90×6 Φ1500 | 100×100×6 Φ2000 | 120×120×8 Φ3000 | 150×150×8 Φ5000 | 180×180×10 Φ6000 | 200×200×10 Φ8000 | 250×250×12 Φ10000 | 300×300×12 Φ15000 | 350×350×12 Φ30000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 80×80×10 Φ1000 | 100×100×12 Φ1200 | 120×120×12 Φ1500 | 140×140×14 Φ1500 | 160×160×20 Φ1800 | 180×180×20 Φ3000 | 200×200×20 Φ4000 | 200×200×28 Φ4000 | 200×200×30 Φ4500 | 200×200×30 Φ4500 |
 | Max.Section(mm) Min.Bending DIA(mm) | 80×80×10 Φ1500 | 100×100×12 Φ2000 | 120×120×12 Φ2000 | 140×140×14 Φ2500 | 160×160×20 Φ3000 | 180×180×20 Φ4000 | 200×200×20 Φ4500 | 200×200×28 Φ6000 | 200×200×30 Φ8000 | 200×200×30 Φ8000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 120 Φ600 | 140 Φ600 | 200 Φ1000 | 300 Φ1200 | 360 Φ2000 | 450 Φ2500 | 500 Φ3000 | 550 Φ4000 | 600 Φ5000 | 700 Φ6000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 120 Φ600 | 140 Φ600 | 200 Φ1000 | 300 Φ1200 | 360 Φ2000 | 450 Φ2500 | 500 Φ3000 | 550 Φ4000 | 600 Φ5000 | 700 Φ6000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 80×80×9 Φ700 | 80×80×10 Φ800 | 100×100×10 Φ1000 | 130×130×15 Φ1500 | 150×150×20 Φ2000 | 180×180×20 Φ3000 | 200×200×20 Φ3000 | 250×250×30 Φ4000 | 300×300×30 Φ4000 | 350×350×30 Φ5000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 120 Φ600 | 140 Φ600 | 200 Φ1000 | 300 Φ1200 | 360 Φ2000 | 450 Φ2500 | 500 Φ3000 | 550 Φ4000 | 600 Φ5000 | 700 Φ6000 |
 | Max.Section(mm) Min.Bending DIA(mm) | 140 Φ4000 | 160 Φ6000 | 200 Φ9000 | 240 Φ15000 | 320 Φ32000 | 400 Φ35000 | 450 Φ40000 | 500 Φ40000 | ||
| Sectional modulus cm 3 | 10-20 | 16-45 | 45-75 | 75-140 | 140-180 | 180-250 | 250-320 | 320-400 | 400-500 | 500-600 | |
| Motor power(kW) | 5.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | 37 | 37 | 45 |
